Auger Bit Teeth

Auger Bit Teeth

A wide selection of Auger Bit Teeth are available for a variety of different applications and ground types. Arrow Auger
Teeth feature a tooth locking system designed to reduce fracturing by utilizing a rubber shock absorption strip. A
simple tool-less locking pin keeps the teeth attached preventing them from falling into the hole.

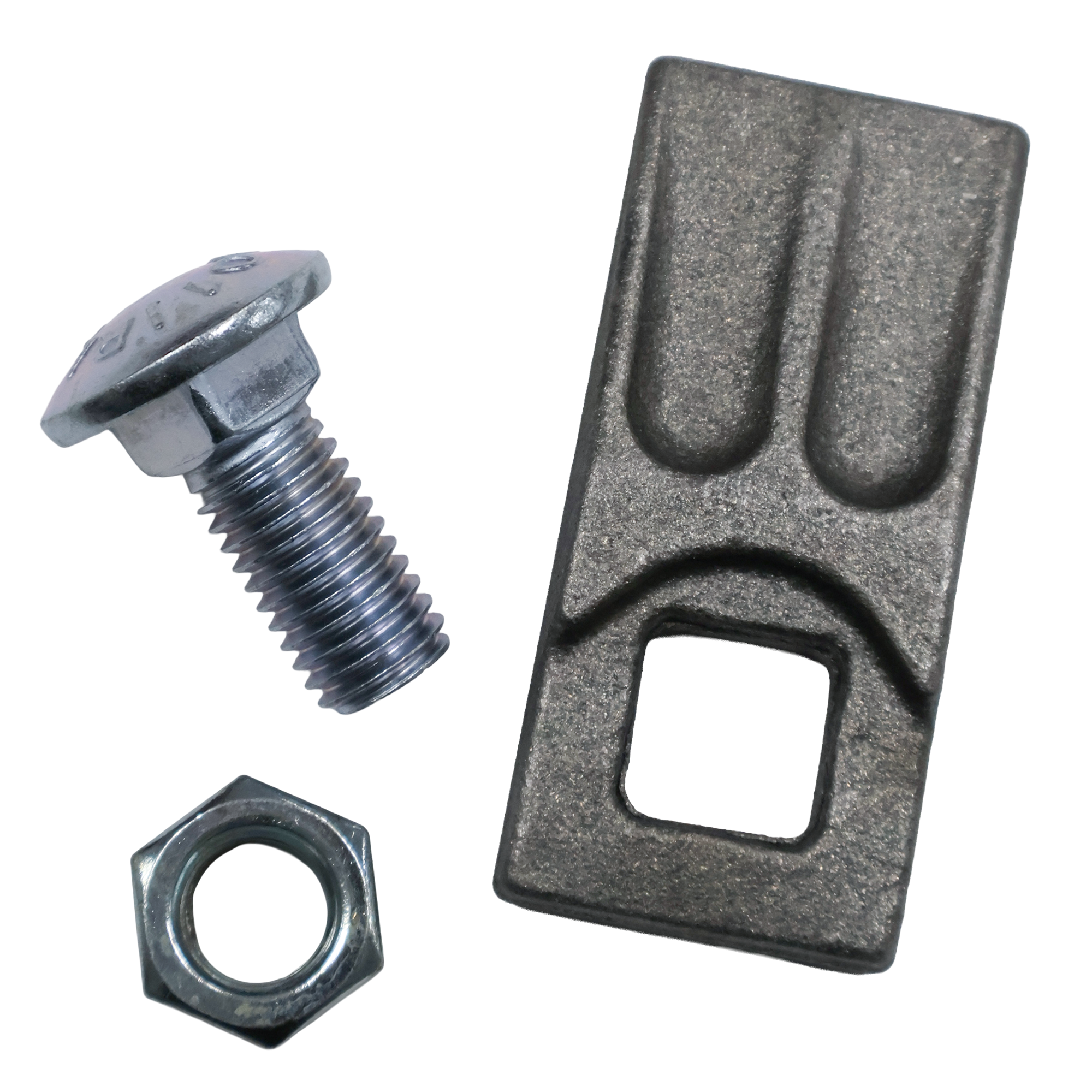

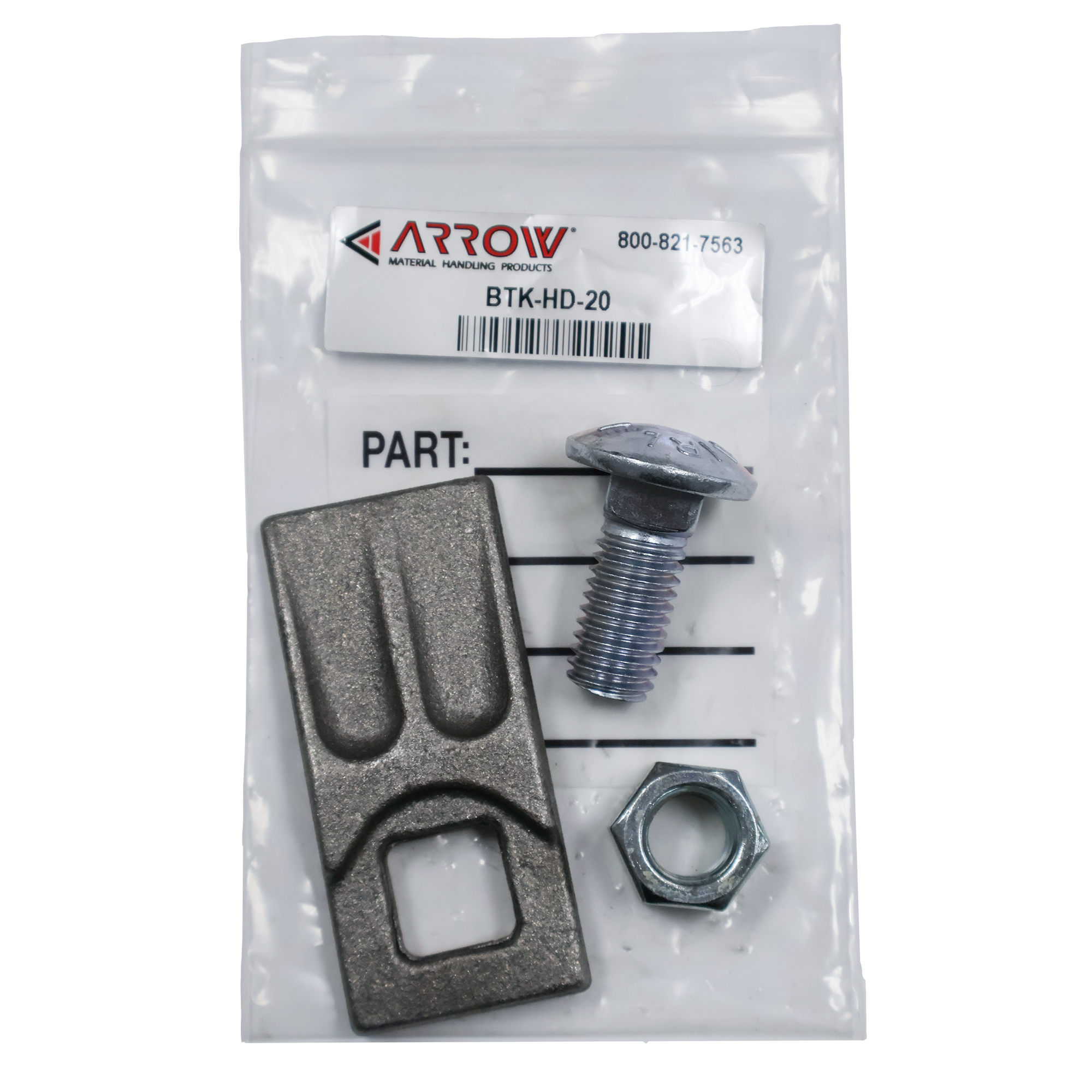

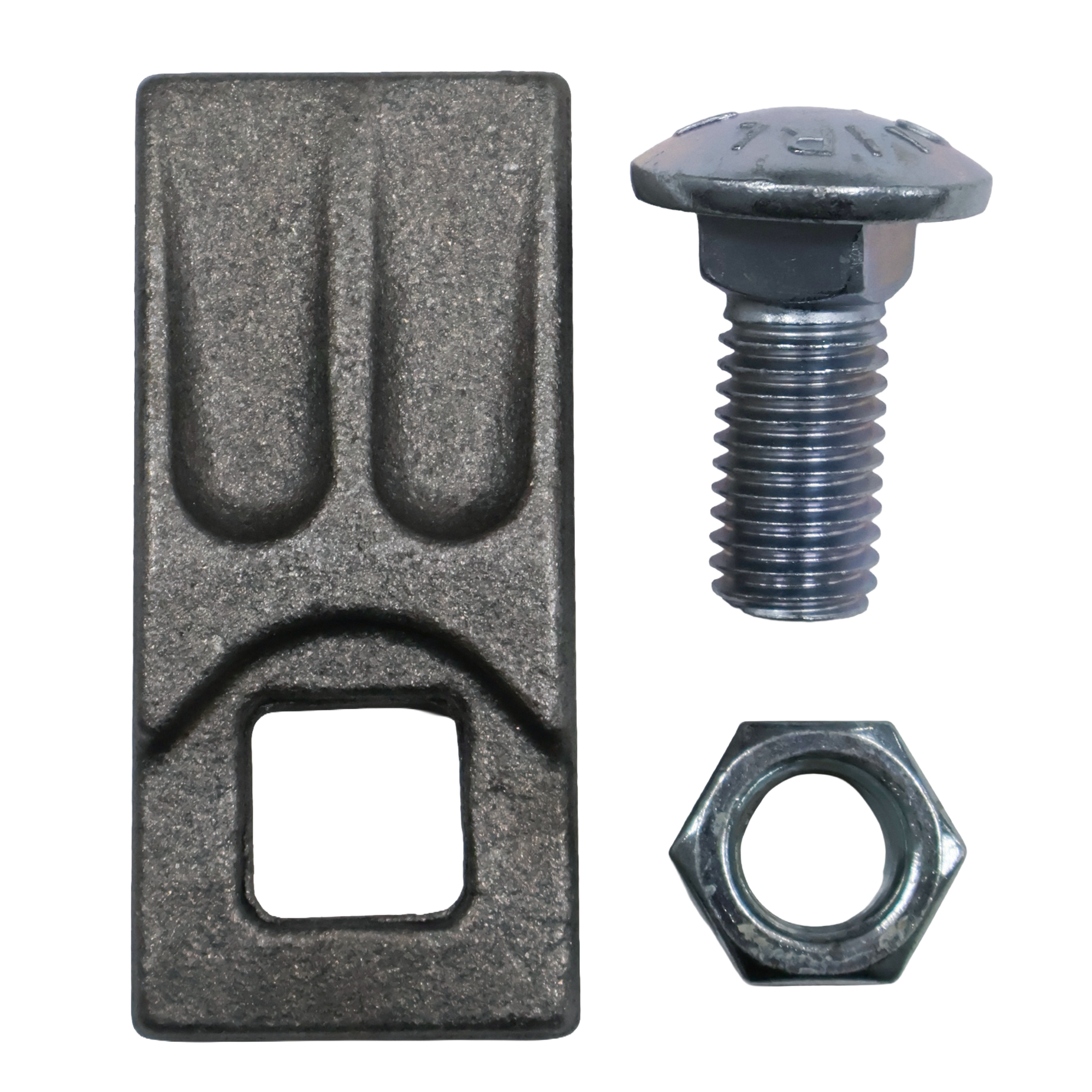

*The Auger Teeth Kit contains ONLY the auger teeth. The Auger Pilot Kit contains ONLY the pilot
bit.

Features

  • Tooth design lessens vibration
  • Locking system prolongs lifespan and prevents tooth loss
  • Designed for fast replacement

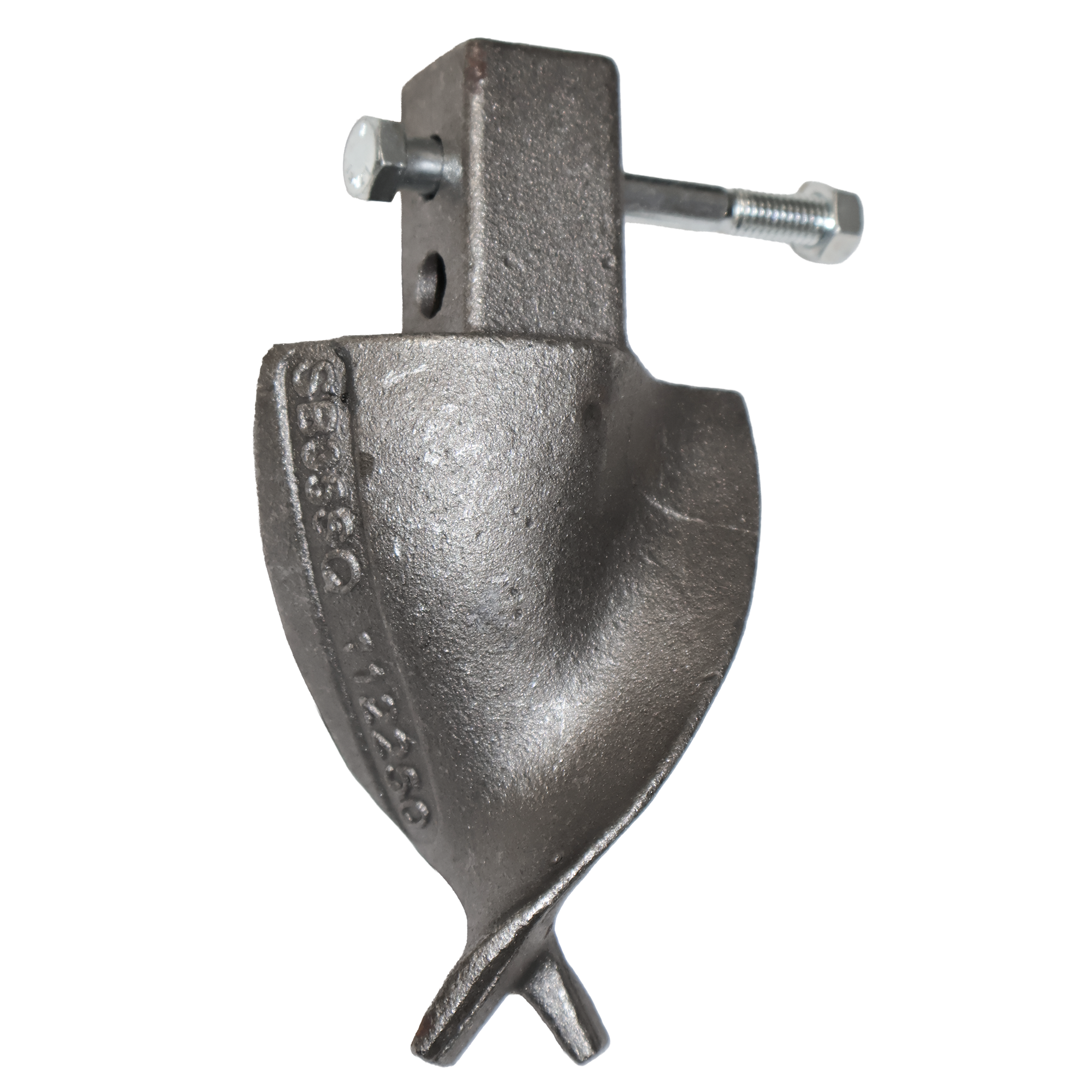

  • Standard Earth Teeth work best in soft ground like dirt or clay
  • Tungsten-Carbide Teeth work best in difficult conditions like compact soil, frozen ground, and asphalt

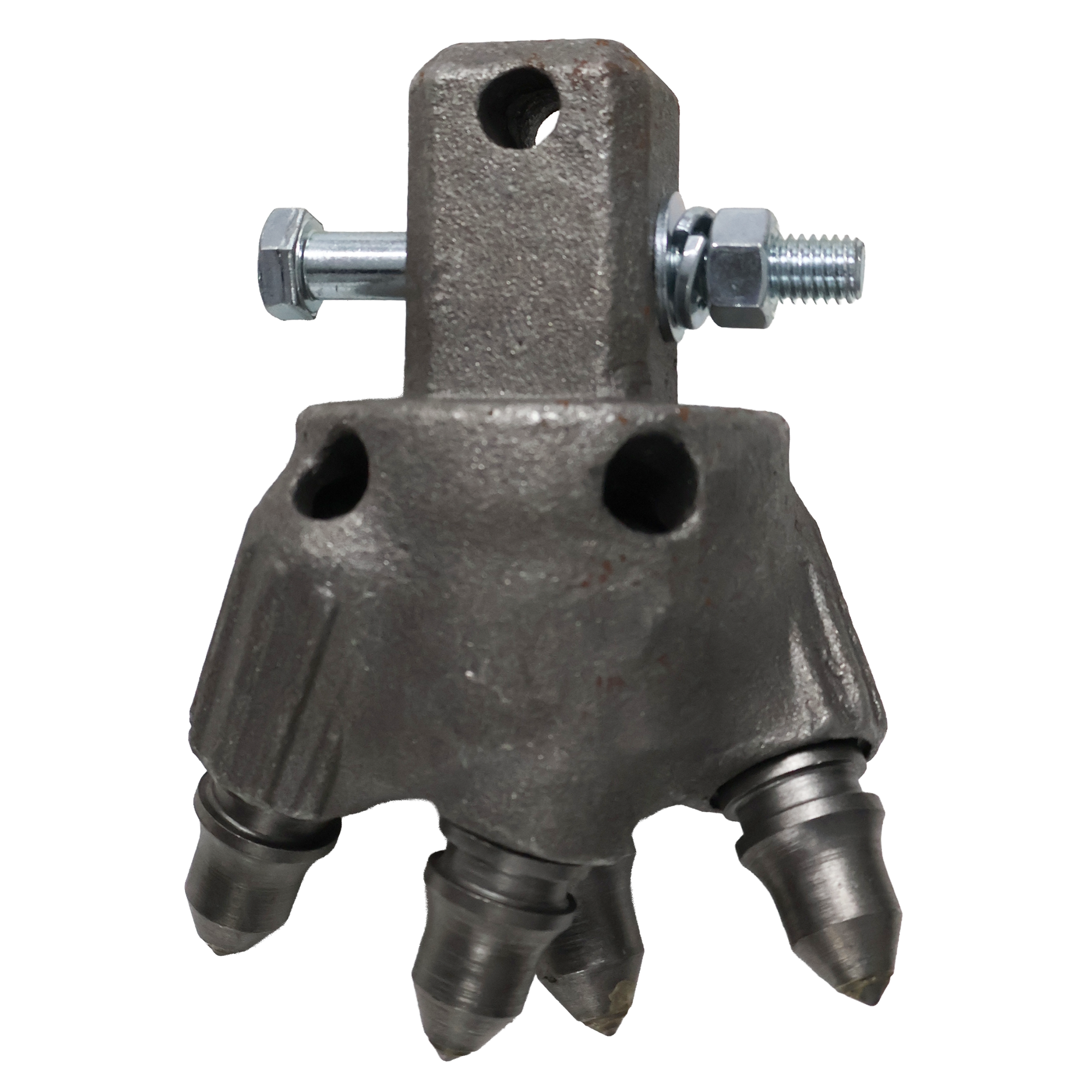

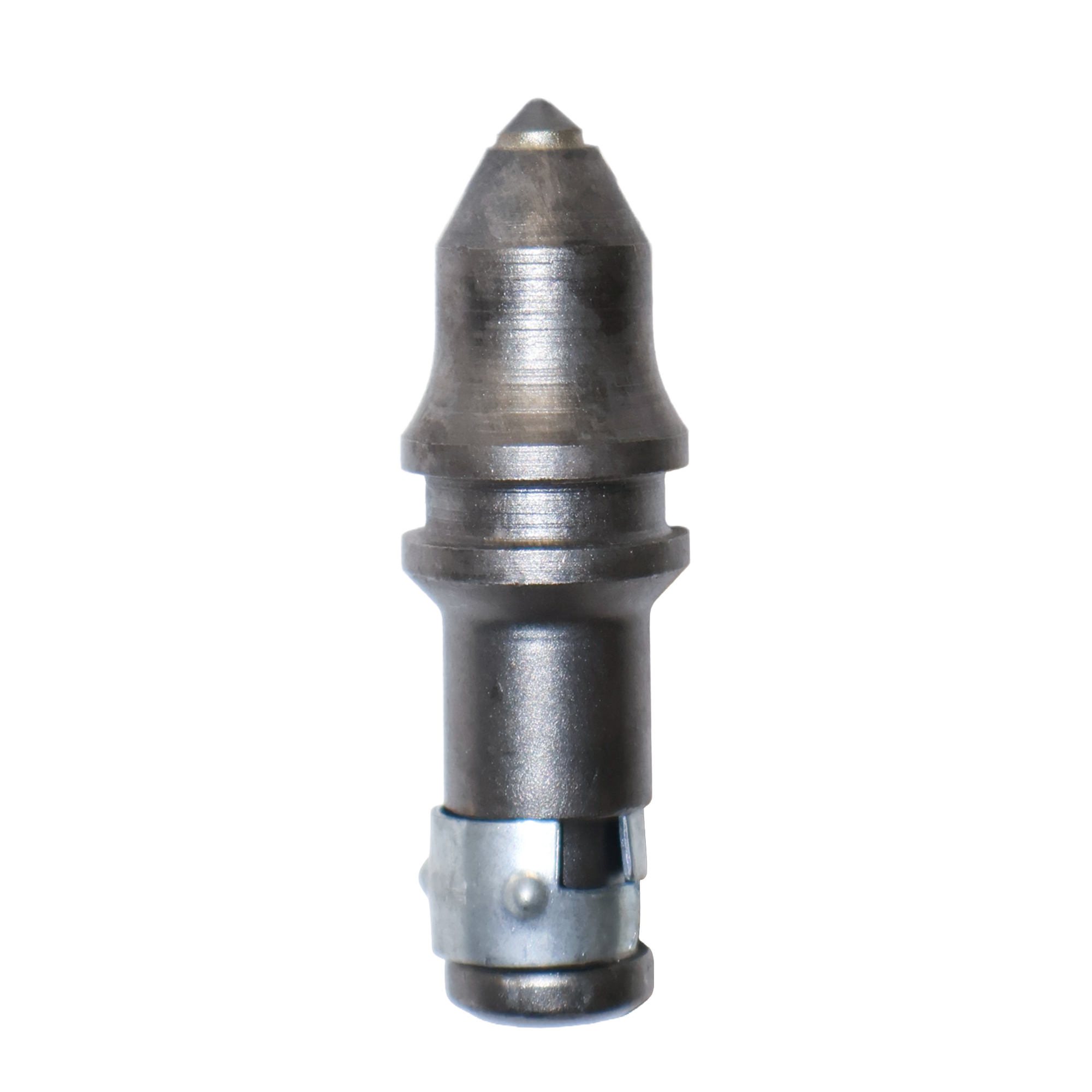

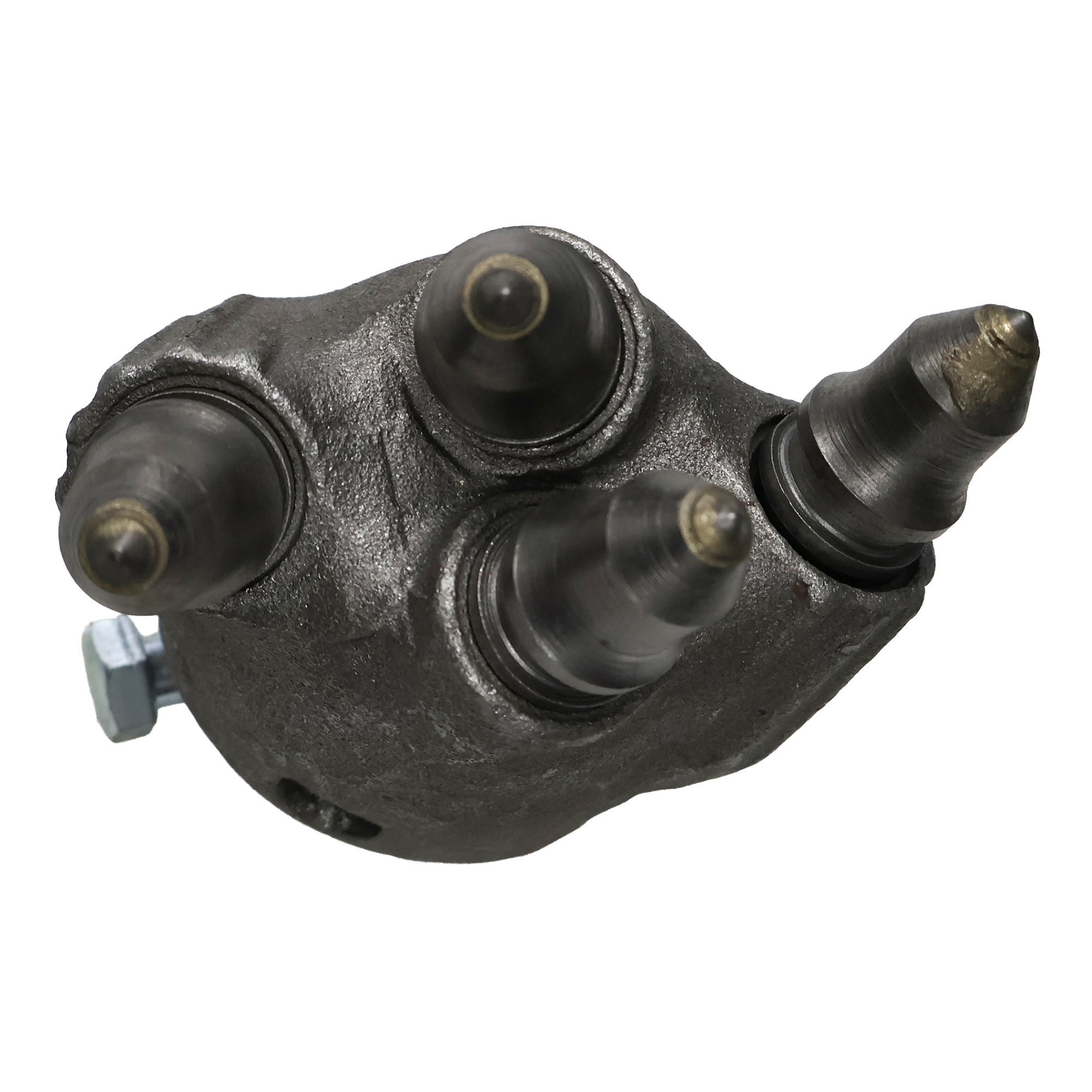

  • Rock Teeth work best in the hardest and most abrasive ground conditions
Teeth Kit Product # Pilot Kit Product # Description
ATK-HD-20 APK-HD-20 Earth 2" Hex Bits or 2.56" Round Bits
ATK-HD-25 APK-HD-25 Earth 2.5" Hex Bits
ATK-TN-20 APK-TN-20 Tungsten-Carbide 2" Hex or 2.56" Round Bits
ATK-TN-25 APK-TN-25 Tungsten-Carbide 2.5" Hex
ATK-RB-20 APK-RB-20 Fits all Arrow Rock Bits

Earth and Tungsten teeth are interchangeable, Rock teeth require a Rock bit for mounting.

Earth and Tungsten
Auger Series
Diameter " 20 25
Number of Teeth
4 N/A N/A
6 2 N/A
8 2 2
9 2 2
10 3 2
12 4 4
15 4 4
16 5 5
18 6 6
20 7 6
24 8 8
30 9 9
32 10 9
36 11 10
40 N/A 11
48 N/A 15
Rock
Auger Series
Diameter " 20 25
Number of Teeth
4 N/A N/A
6 2 2
8 2 2
9 4 4
10 4 4
12 6 6
15 7 7
16 9 9
18 9 9
20 10 10
24 12 12
30 16 16
32 18 18
36 18 18
40 22 22
48 24 24
