Fork Positioning Pallet Forks
Features:
- Removable bolt in fork positioning kit
- Fork Pockets for standard ITA class 2 forks
- Accepts forks 4-5” wide
- 6,000 lb capacity
- True ITA Class 2 lower carriage bar
- Heavy Duty 2” cylinders with 1.125” diameter piston rod
All-In-1 Skid Steer Fork Positioner
Arrow’s fork positioning pallet forks are the ultimate all-in-1 frame solution for skid steers! The frame is designed to be used as a standard frame or to be easily converted into a fork positioning frame by simply bolting in the fork positioning kit. Simply install the kit, hook up your jump hoses, and you now have a full functioning fork positioning frame. This kit comes with fork pockets allowing you the use standard ITA class 2 forks. This eliminates the need for custom forks with lugs welded to the back of the forks. Simply install the forks, and install the fork stop block to lock the fork to the cylinder. Maintenance made easy with Arrow’s fork positioning frame. Simply remove the entire kit and have easy access to all hydraulic fittings and parts. Eliminate having to work in hard-to-reach areas.
Frame and kit can be sold separately with part numbers below:
- Frame: 1005440
- Bolt-in hydraulic kit: 1005437
Hoses and fittings sold separately
- 66” jump hose kit: S5437-SPLYHOSEKIT
*Forks on the hydraulic frame are designed for "Lifting", not "Squeezing", and should not be re-positioned while under load.

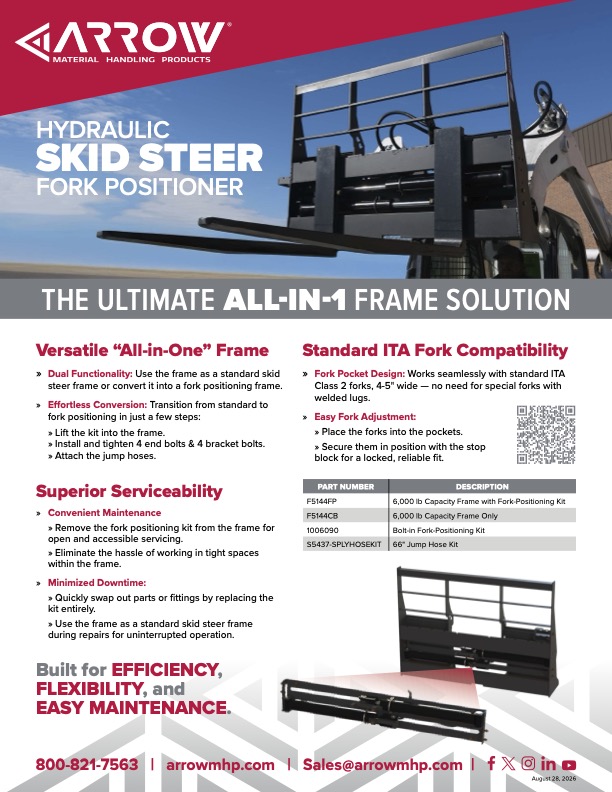

Brochure
Forks
Use Chart below for selecting ITA forks to use with frame.
| Fork P# | Length | Capacity |
| 73150-4-42-2 | 42″ | 5,500 lbs |
| 73150-4-48-2 | 48″ | 5,500 lbs |
| 73150-4-60-2 | 60″ | 5,500 lbs |
| 73150-5-72-2 | 72″ | 5,500 lbs |
| 73150-5-42-2 | 42″ | 6,400 lbs |
| 73150-5-48-2 | 48″ | 6,400 lbs |
| 73150-5-60-2 | 60″ | 6,400 lbs |
| 73150-5-72-2 | 72″ | 6,400 lbs |
